The Orthostand Solution.

Ergonomically engineered for comfort, safety and efficiency in footcare environments.

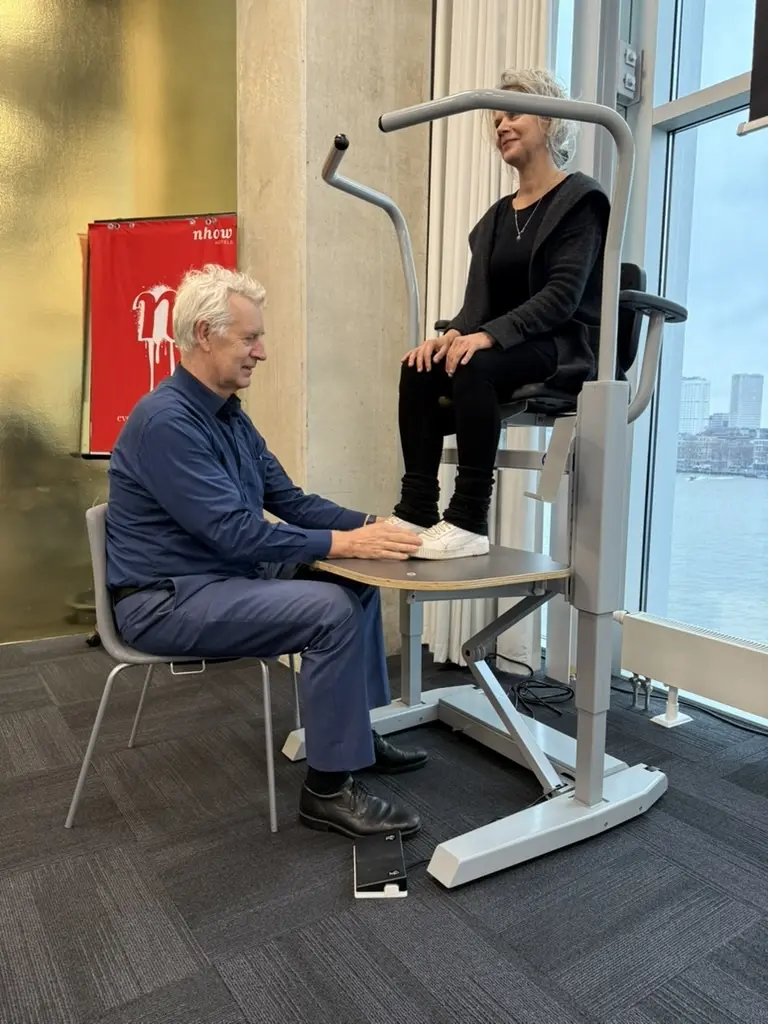

01 Meet Orthostand One.

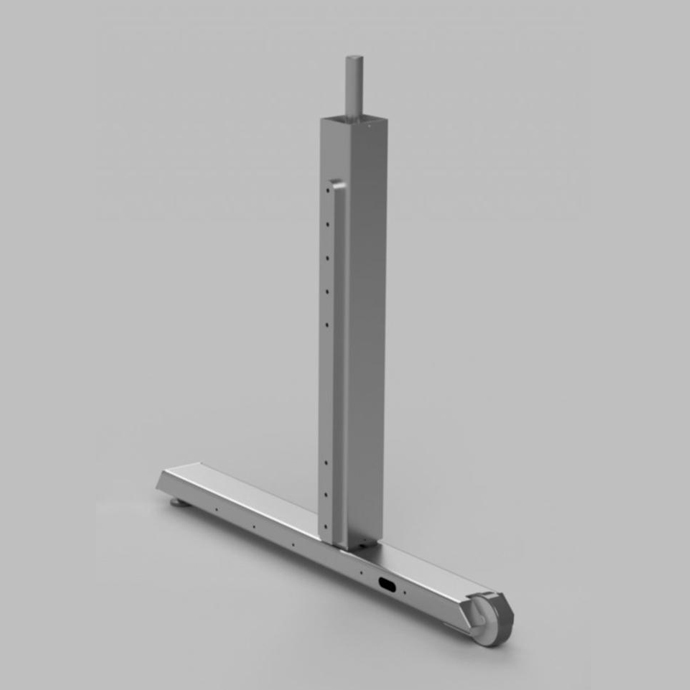

Orthostand One is a height-adjustable standing aid designed specifically for footcare professionals. With its low step-up height of just 14 cm, rotating safety bars, and powerful dual-motor lift system, it offers both patient safety and practitioner comfort.

  • Safe electric height adjustment
  • Sturdy safety bars with multiple locking positions
  • Optimized for balance, stability and mobility

The system supports up to 140 kg.

02 Designed for Practical Use

Orthostand One was developed to improve working posture, maintain client interaction, and support third-party integrations. Key ergonomic and workflow features include:


Operate height changes using a foot control pedal, allowing you to maintain full focus on your client.

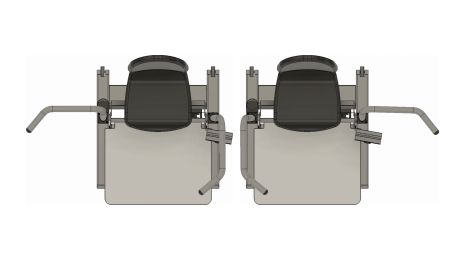

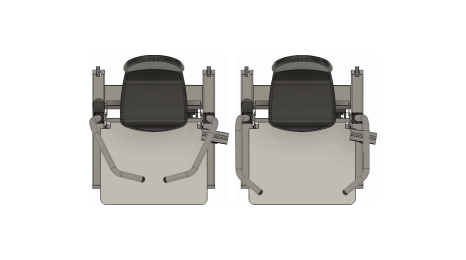

The swiveling safety bars can be locked into four different positions:

• Step-up position
• Standard support position
• Closed position (for smaller individuals)
• Transport position (for easier mobility)

We offer a 30-day return policy for all products. Items must be in their original condition, unused, and include the receipt or proof of purchase. Refunds are processed within 5-7 business days of receiving the returned item.

03 Key Features & Accessories

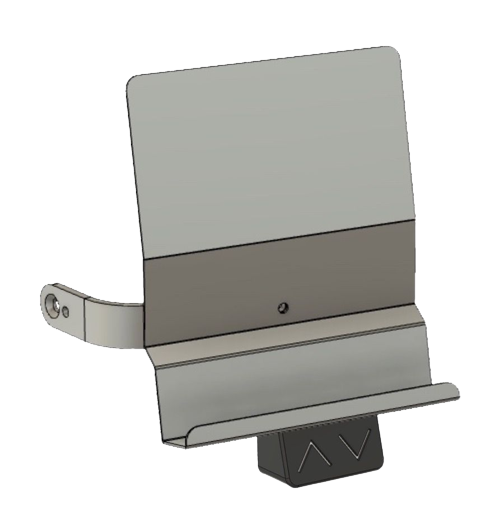

Notebook holder

Optional accessory for keeping your device accessible during treatments.


2

 Safe Step-Up

14 cm step-up height from the sides for easy access.

3

Wide Accessibility

Adjustable support positions suitable for all body types.

04 Technical Specifications

• Total Width: 88 cm (with safety bars)
• Width with one bar open: 128 cm
Floor contact area: 77.5 cm x 80 cm
Length: 98 cm

Width: 70 cm
Depth: 56 cm
Height range: 13 cm to 54 cm
Extended positions: +5 cm = 58 cm, +10 cm = 63 cm

Width: 44 cm
Depth: 43 cm
Fixed height: 41.5 cm from the ground
(Optional: Electrically adjustable seat between 39.5 cm and 51.5 cm — in development)

Height from platform: 110 cm

Product weight: 65 kg
Load capacity: 140 kg

05 System Compatibility & Workspace Requirements


If an accessory is placed under the platform, the entire height increases by +5 cm or +10 cm depending on the system setting.

The minimum ceiling height required for a client of 195 cm is:

250 cm in standard position
255 cm in +5 cm setting
260 cm in +10 cm setting

06 Options & Modules

Sensor Module with horizontal slide feature (for scanner integration)

The Slider Module that is attached to the System frame is a kind of drawer for equipment on which clients are analyzed while standing up. In use, the tray rests on the platform. To use the Platform, the slider is pushed back.

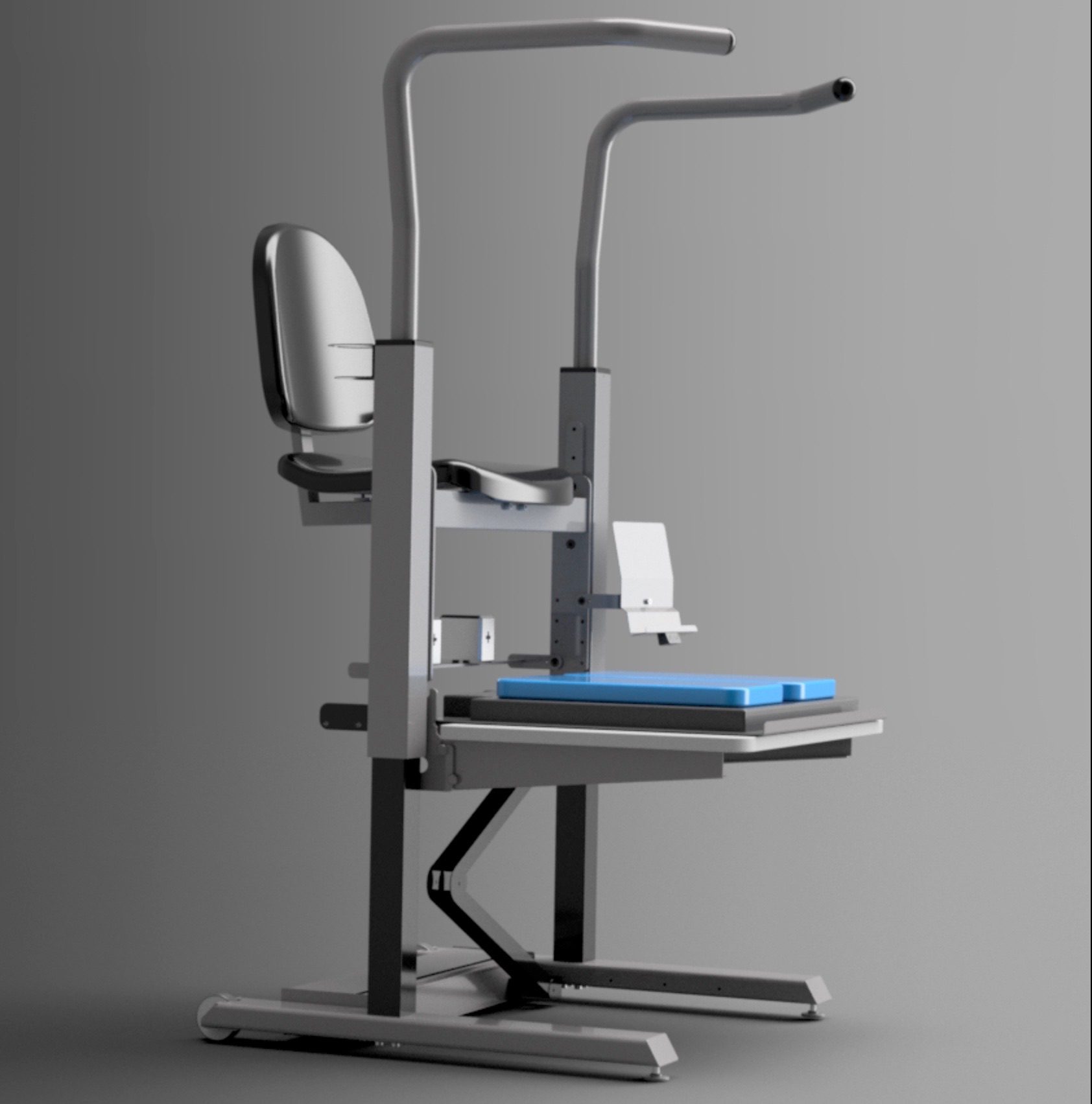

1. Slider Module set backwards. (low)

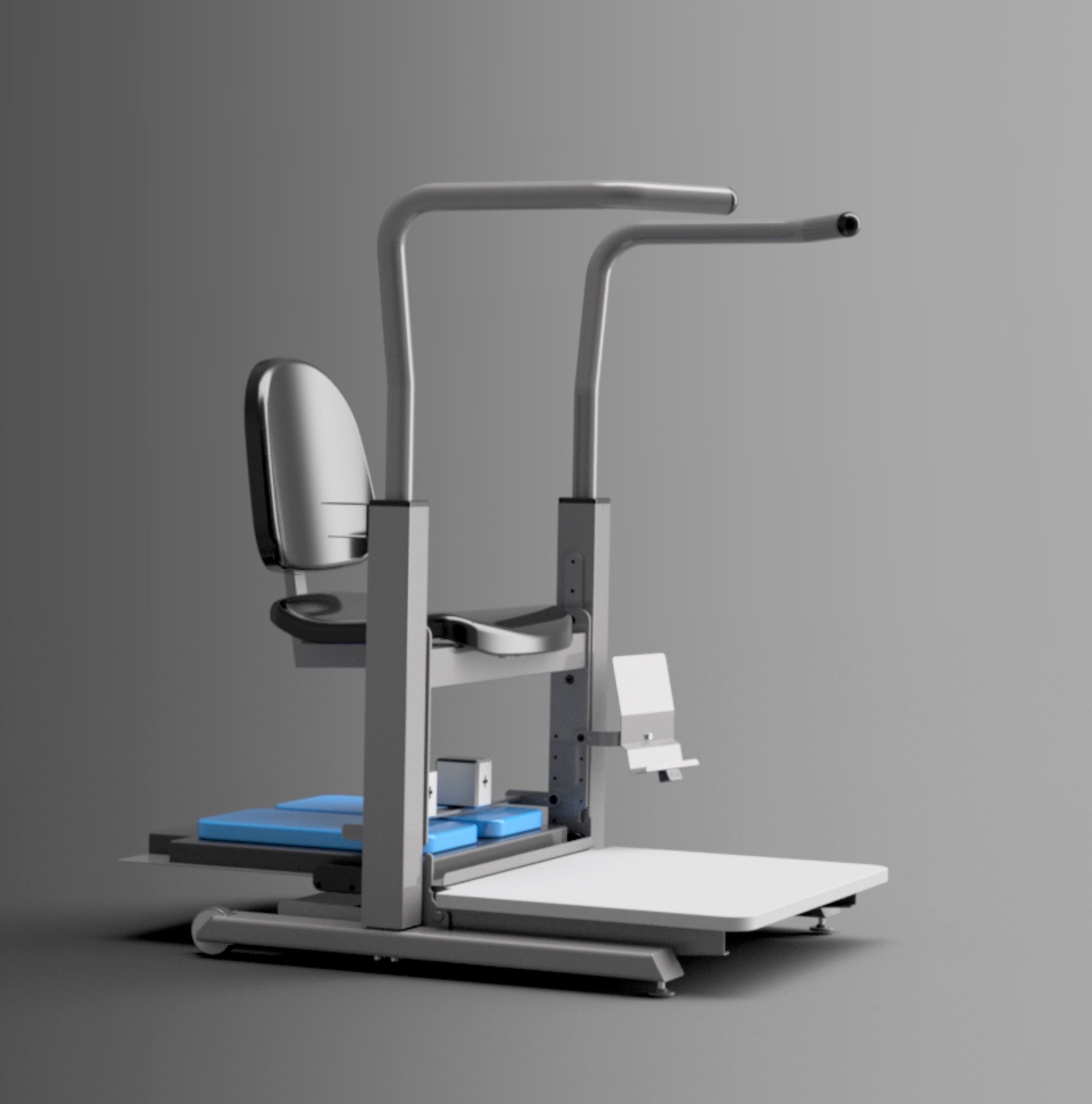

2. Slider Module set backwards. (high)

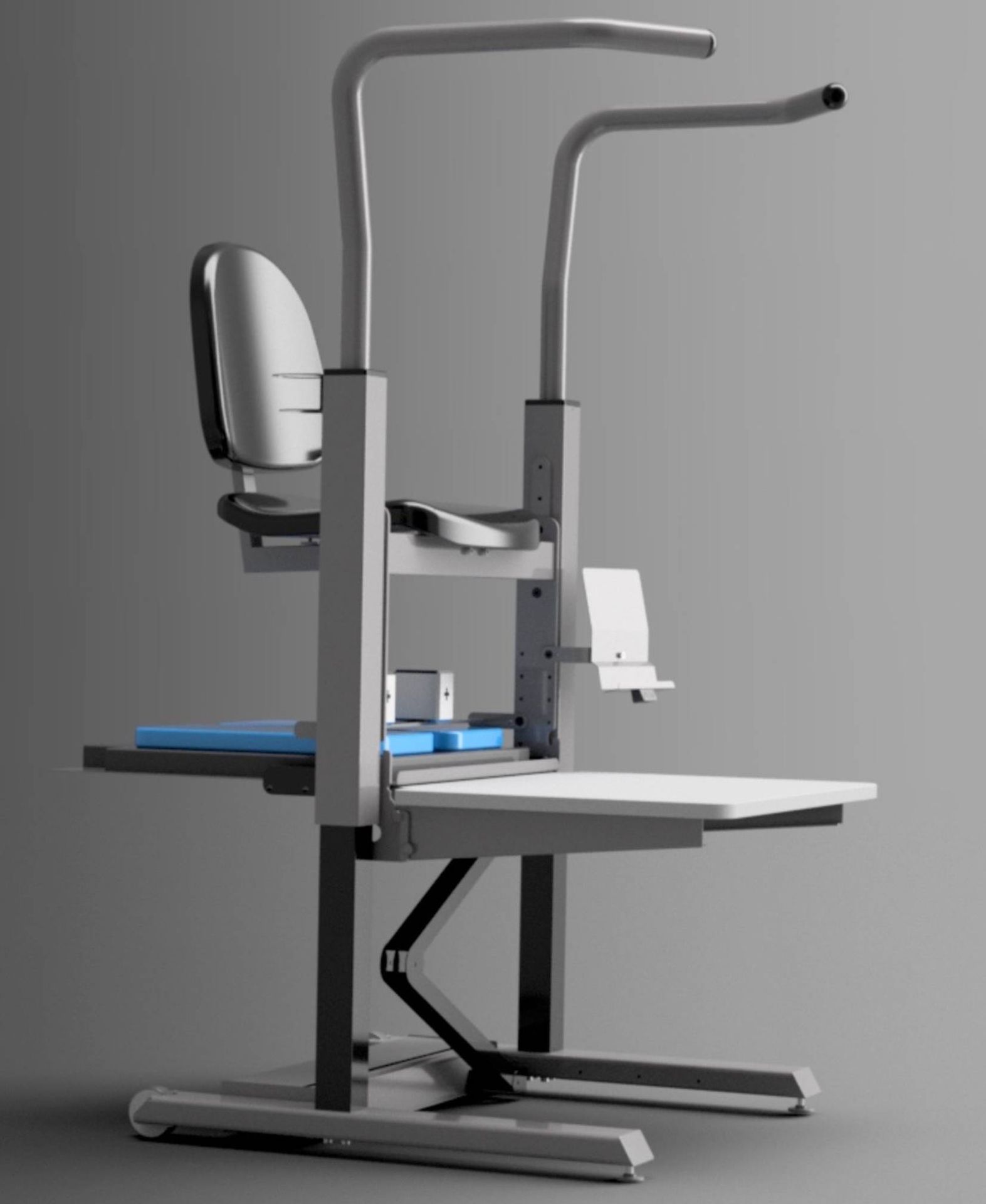

3. Slider Module set forward in action.

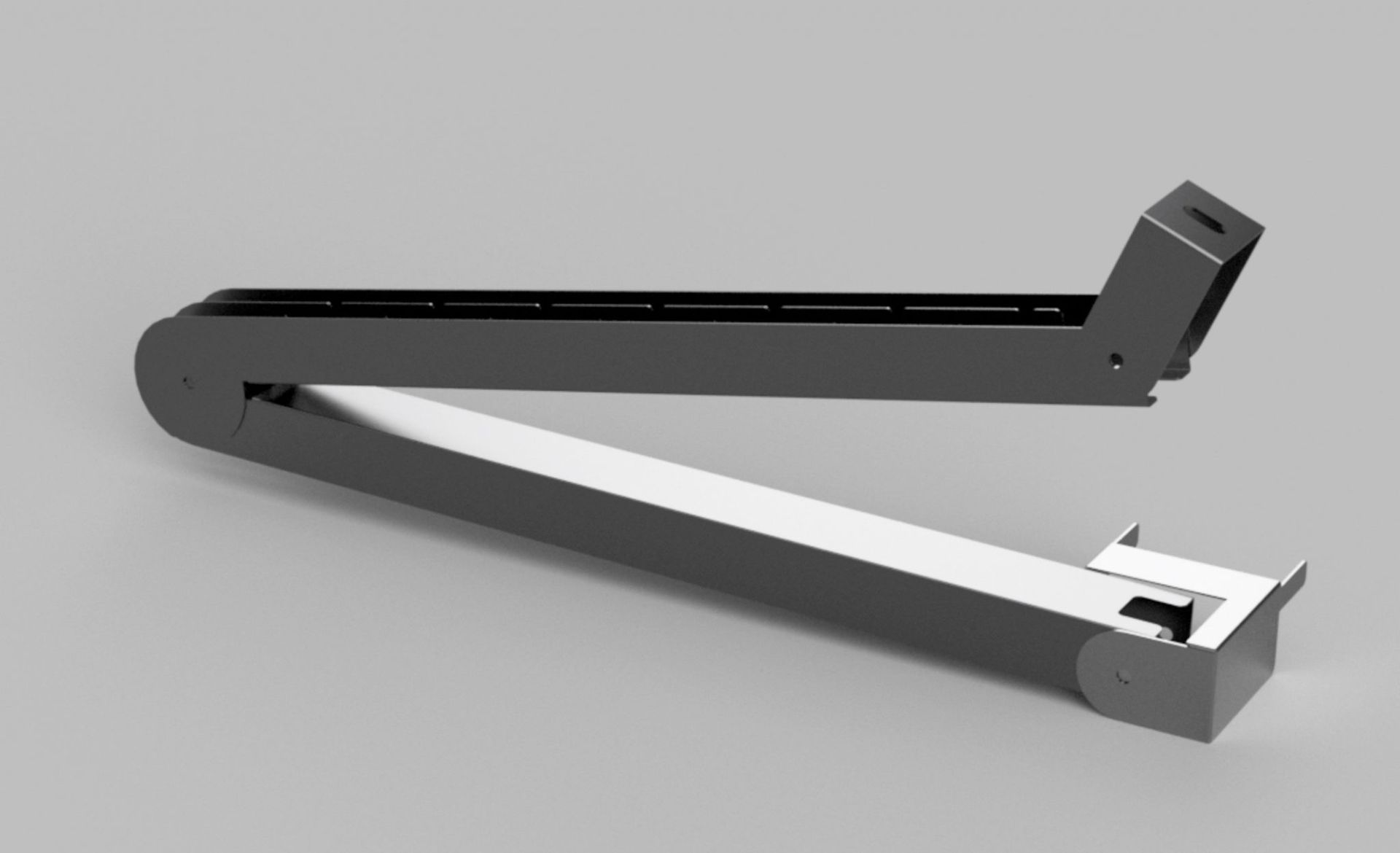

Height-variable cable management.

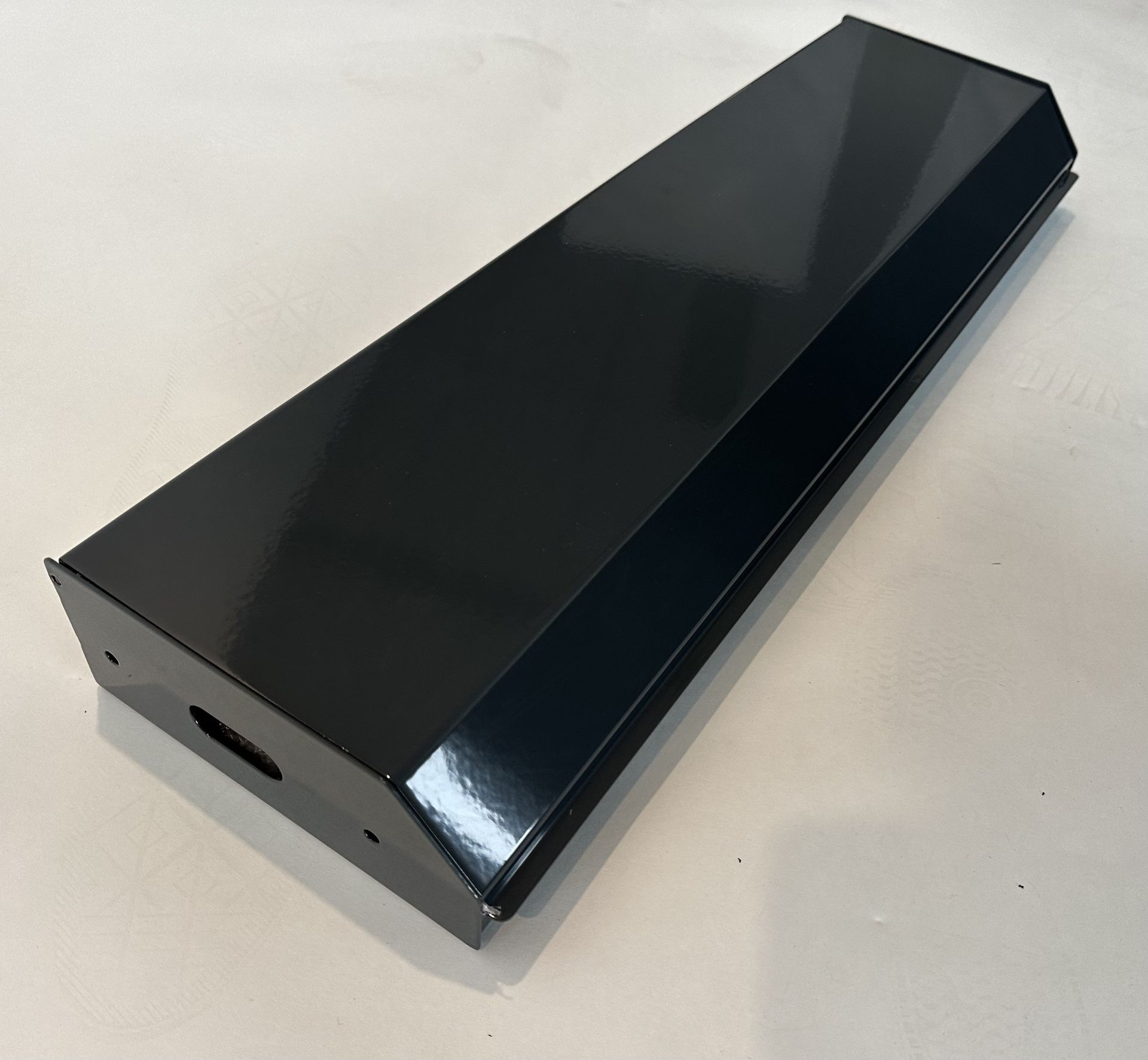

Cable housing for additional safety and tidiness.

  Improved posture and ergonomics for practitioners.

  Increased safety and comfort for clients.

  Integration with third-party tools.

  Designed and built for medical environments.
