Working platform

Orthostand is a working platform

Orthostand raises the client, standing, to your working height. You stay upright. Your arms rest on the platform. Your eyes are at the correct distance from the treatment area. The foot in front of you can be loaded, weight-bearing and ready to be assessed, scanned, casted, fitted or corrected exactly the way it functions in daily life.

Clinical accuracy with standing patients. Static and dynamic assessment, pressure testing, alignment checks and gait analysis are performed under physiological load. No more extrapolating from an unloaded foot.

Workflow efficiency. Scanning, casting, fitting and fine-tuning happen in one position, on one device, with the client stable and at the right height. No transfers, no repositioning between assessment and treatment.

A specialist seated at the Orthostand assessing a client's foot under load while the client stands on the raised platform

Standing assessment — without the strain on you.

The M30

Orthostand M30 — The Engineering & Logistics

Modular by design | Global by reach

The M30 is built on a modular System Frame architecture. Designed for strength, speed of assembly, and adaptability, the frame system ensures the lift remains a rigid, professional workstation.

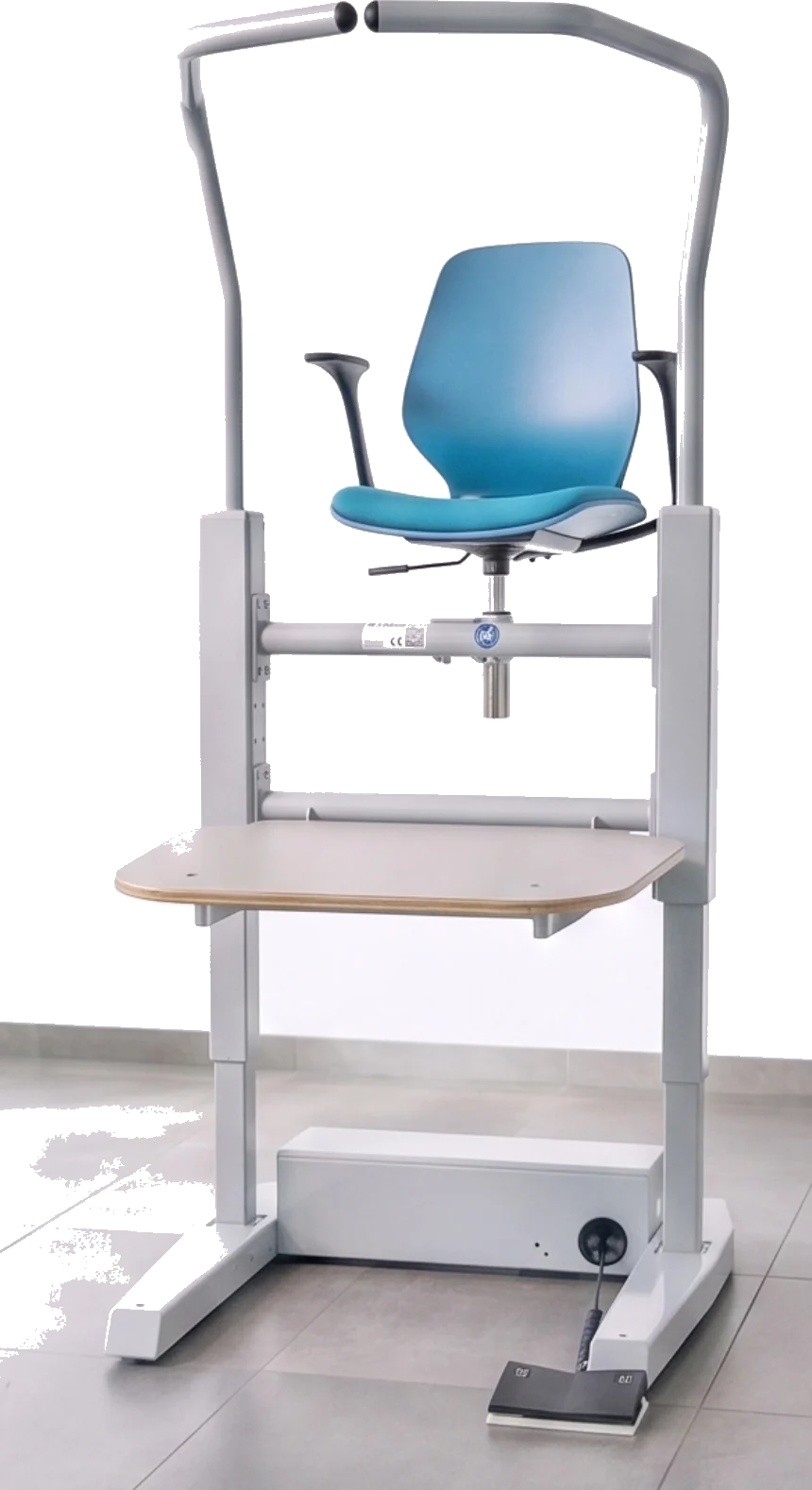

The Orthostand M30 — height-adjustable examination and treatment workstation

The System Frame Architecture

The core of the lift consists of two solid tube frames (13) + (14) equipped with solid flanges, mounted between the two synchronized lifting columns (8).

  • The Upper System Frame (13): Engineered for clinical versatility, it features an integrated quick-connector for the Seat Frame (6). This allows the seat (5) to be securely mounted or removed using only a single screw, enabling rapid transitions between standing and seated analysis.
  • The Lower System Frame (14): Designed for efficiency, it contains two tool-less quick-connectors for the Platform (2). This unique design allows the platform to be mounted and secured without the need for screws, simplifying cleaning and maintenance.
  1. Rotating Stand supports
  2. Platform
  3. Base
  4. Seat support
  5. Seat
  6. Seat frame
  7. Gaslift
  8. Lift unit
  9. Cable box
  10. Wheels
  11. Elbow cable transport
  12. Foot switch
  13. Upper System frame
  14. Lower System frame

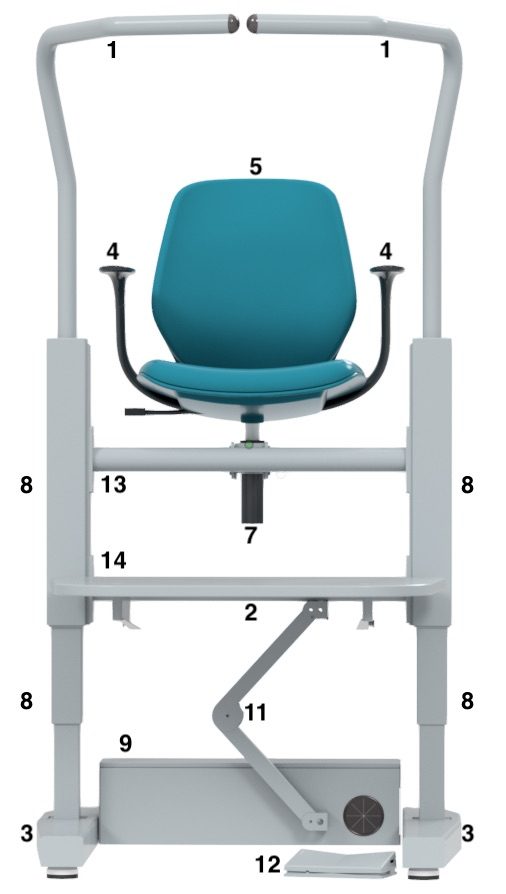

Orthostand M30, front view with the fourteen numbered system components

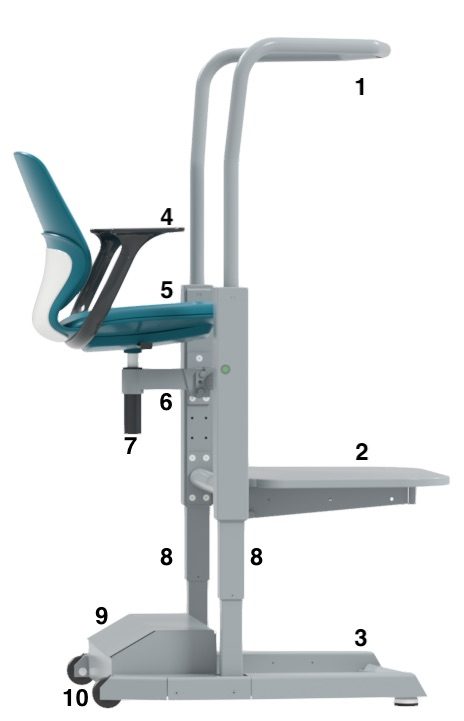

Orthostand M30, side view with numbered components showing the height-adjustable frame

Modular Height Adjustment

The M30 is adaptable to the practitioner's height and specific clinical needs. The entire System Frame set can be easily adjusted 5 cm higher to customize the workspace:

  • Standard Configuration: Step-up height of 18.5 cm, lifting to 68.5 cm.
  • High Configuration: Step-up height moves to 23.5 cm, with a maximum height of 73.5 cm.
  • The Advantage: Elevating the System frame set provides even greater legroom and clearance under the platform, offering maximum ergonomic comfort for taller specialists during close-up work.
Two Orthostand M30 units stacked as a Twin-Pack on a pallet in the warehouse, ready for international shipping
Global logistics

Global Logistics: The Twin-Pack Innovation

The Orthostand M30 is a global product, engineered for efficient international distribution. To minimize the environmental and financial impact of shipping, we developed the Twin-Pack system.

  • Stackable Design: The M30 is engineered so two units can be safely stacked on top of each other.
  • 50% Transport Savings: This "Twin-pack" configuration halves the volume required for shipping, effectively cutting international transport costs by 50%.
  • Global Distribution: To ensure fast delivery and localized support, the M30 is shipped directly from our primary hubs in the Netherlands and Malaysia.

Modular by design | Global by reach

Technical Specification Orthostand M30

CategorySpecification
Weight capacity140 kg (Safety-limited)
Net weight66 kg
Footprint105 cm (Depth) x 82 cm (Width)
Platform size77 cm (w) x 56 cm (d)
Seat dimensions44 cm (w) x 47 cm (d)
Seat height39.5 cm – 57 cm (Adjustable)
Step-up height18.5 cm (Standard) or 23.5 cm (High)
Max height platform68.5 cm (Standard) / 73.5 cm (High)
Lift travel50 cm Vertical Electric Lift

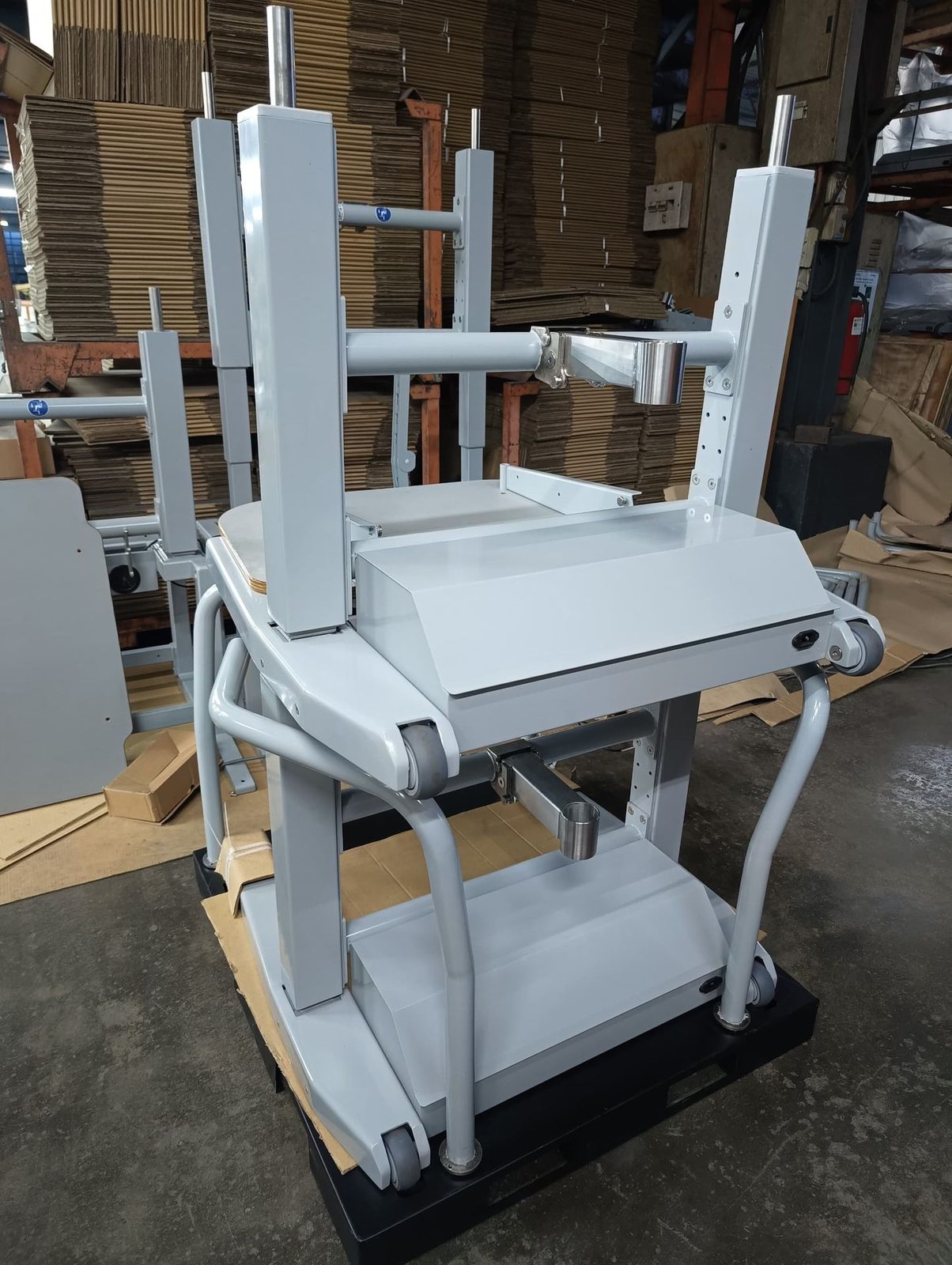

Orthostand M30 units prepared for shipping in the warehouse

Safe Step-Up

14 cm step-up height from the sides for easy access.

Orthostand M30 seen from above — safe step-up from the sides

Wide Accessibility

Adjustable support positions suitable for all body types.

Orthostand M30 seen from above — adjustable support positions for wide accessibility

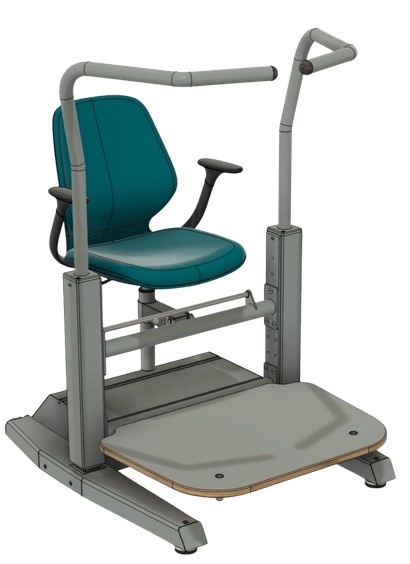

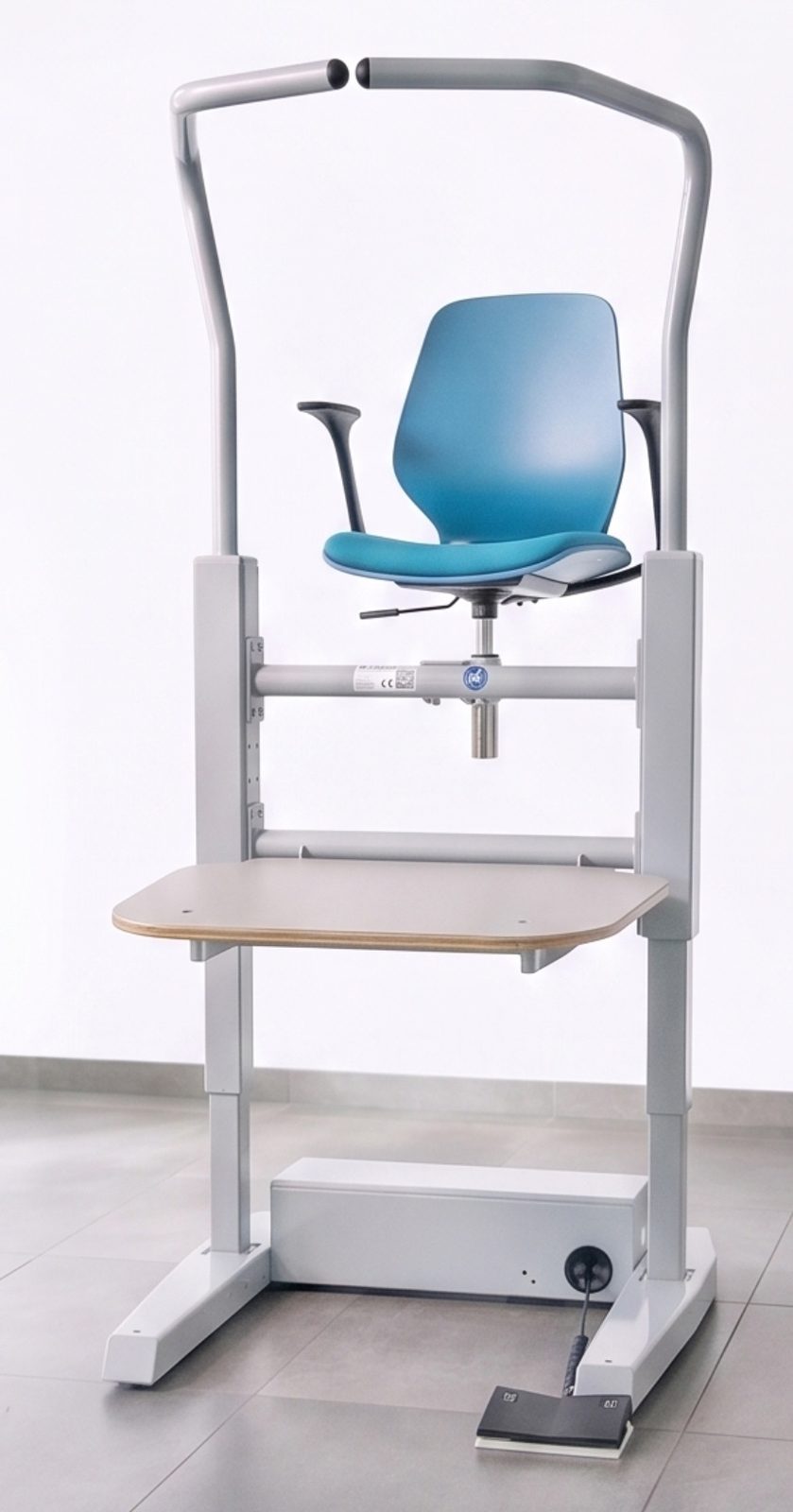

The Orthostand M30 examination and treatment workstation
